Giant Trance X Advanced Pro 29 2
Extra travel, extra fun. From rowdy enduro runs to backcountry missions on steep, chunky singletrack, this new composite 29er builds on the Trance 29 platform with beefed up suspension and adjustable frame geometry.
This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails. The full composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding style and terrain. To fine tune the ride, you can choose a steeper or slacker headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2 degrees), which results in either a 30mm or 40mm bottom bracket drop. And it's all built around 29-inch wheels for added stability on rugged terrain.
29er confidence and control
Optimized Maestro suspension for 29-inch wheels with 135mm rear/150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.
Full Composite Construction
Mainframe and rear swingarm are engineered with proprietary material featuring high-performance carbon fiber and resin. Handcrafted monocoque construction makes it lightweight, stiff and compliant.

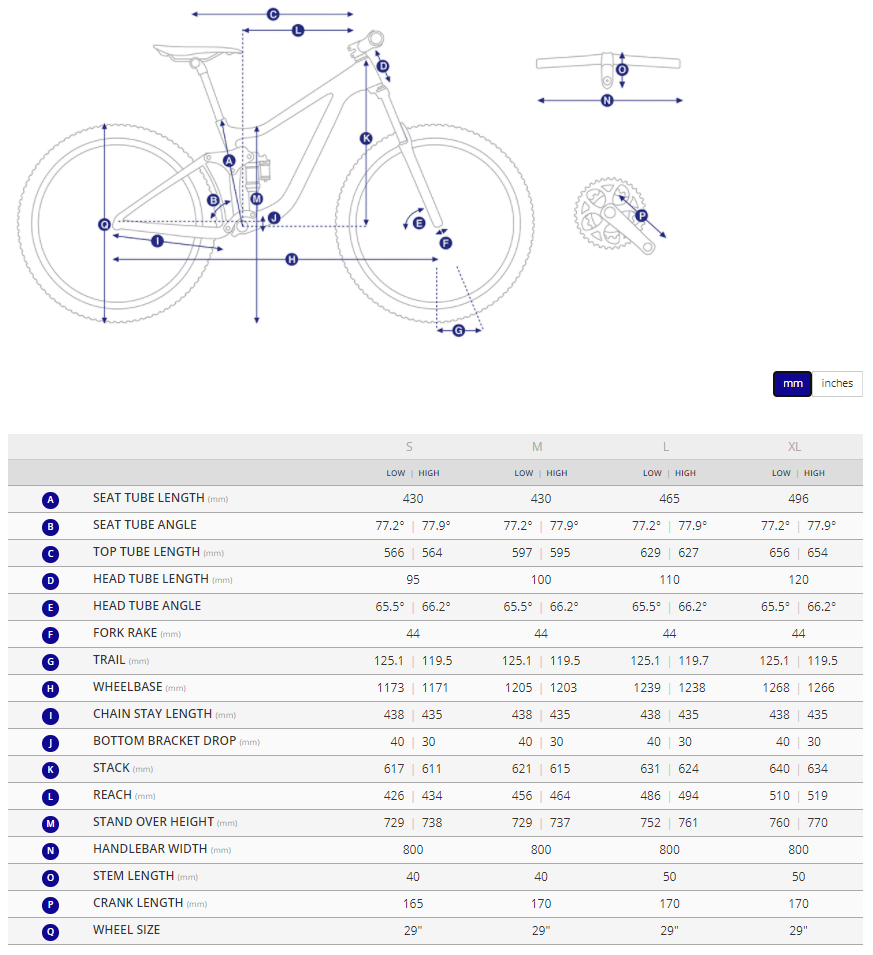

Adjustable frame geometry
Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for faster, open terrain or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
|Frame||Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip|
|Fork||RockShox Pike Select, 150mm, Boost 15x110 Maxle Stealth, 42mm offset, custom tuned for Giant|
|Rear Shock||RockShox Deluxe Select+, 185/55, custom tuned for Giant|
|Rims/Wheels||Giant TRX-2 29 Carbon WheelSystem, 30mm inner|
|Hubs||Giant TRX-2 29 WheelSystem, Boost|
|Spokes||Giant TRX-2 29 WheelSystem, DBL technology|
Front: Maxxis Minion DHF, tubeless, 29x2.5", WT, 3C, MaxxTerra, EXO, TR
Rear: Maxxis Dissector, tubeless, 29x2.4", WT, 3C, MaxxTerra, EXO, TR
|Crankset||Truvativ Descendent 6k Eagle, DUB Boost, 30t|
|Bottom Bracket||SRAM DUB, press fit|
|Chain||SRAM NX Eagle|
|Rear Derailleur||SRAM NX Eagle|
|Cassette/Rear Cogs||SRAM NX Eagle, 12-speed, 11x50|
|Shifters||SRAM NX Eagle|
|Handlebars||Giant Contact Trail, 35|
|Stem||Giant Contact SL 35|
|Brake Levers||Shimano MT501|
|Brakes||Shimano MT520 hydraulic 4-piston (F:203mm, R:180mm)|
|Saddle||Giant Romero SL, SST rails|
|Seat Post||Giant Contact Switch dropper with remote, 30.9|
|Accessories & Extras||Tubeless prepared|
* Subject to change without notice.
