Juliana Quincy CC GRX

Juliana Quincy CC GRX
Color: Gloss Fog and Bright Gold
Size: 52cm
Please select options Unavailable

Details

The bike to get lost—and found—on.

Quincy is inspired by a place like no other. Nestled deep in the Sierra Mountains of Northern California is a small gold rush town where the avenues for adventure seem endless.

Miles upon miles of dirt roads that lead to nowhere and everywhere. The kind of roads you want to get lost and found on. Where you don't quite know what kind of bike is best suited, and forces a constant re-think of your whole darn setup. This is Quincy terrain.

A full carbon frame and fork gives where you need it and takes a beating where you need it more. From tarmac to way-off-the-map, this is a robust bike that's comfortable on or off-road all day long.

Designed to adapt, Quincy is built with clearance to run wide tires on either size wheel (700c x 45mm and 650B x 2.1"). Pleasingly simple single-ring drivetrains come standard, but the frame can also accommodate a dual chainring set-up if desired.

Cleverly routed hydraulic disc brakes ensure you're always in control, no matter how fast you're rolling in any conditions. Meanwhile, mounts for fenders and three water-bottle cages complete the incredibly versatile, all-conditions package.

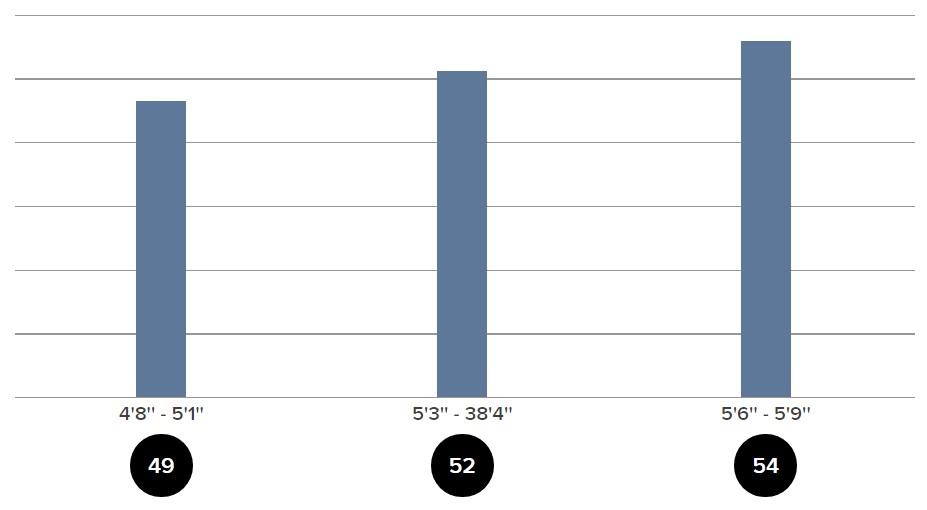

With a size range that fits rider heights from around 5'0 up to 5'9 and a geometry that perfectly balances confident handling with precision reactivity, this is a Juliana Bicycle through and through. And, like all our bikes, Quincy is spec'd with kits we feel are best suited to potential owners. This includes the Ergon SR10 women's saddle and bar widths matched to frame size for a tailored cockpit that gives Quincy that unique fit, look, and feel.

700c
bike frame with labeled dimensions
Bike Sizes:
495254
A. Reach 365mm 372mm 380mm
B. Stack 530mm 555mm 576mm
C. Standover 730mm 754mm 776mm
D. Effective Top Tube 512mm 526mm 545mm
E. Head Tube Angle 69.5° 71° 71.5°
F. Head Tube Length 110mm 130mm 150mm
G. Seat Tube Angle 74.5° 74.5° 74°
H. Seat Tube Length 470mm 495mm 520mm
I. Bottom Bracket Height 280mm 280mm 282mm
J. Bottom Bracket Drop 74mm 74mm 72mm
M. Wheelbase 1006mm 1009mm 1015mm
N. Front to Center 594mm 595mm 600mm

650b
bike frame with labeled dimensions
Bike Sizes:
495254
A. Reach 365mm 372mm 380mm
B. Stack 530mm 555mm 576mm
C. Standover 730mm 754mm 776mm
D. Effective Top Tube 512mm 526mm 545mm
E. Head Tube Angle 69.5° 71° 71.5°
F. Head Tube Length 110mm 130mm 150mm
G. Seat Tube Angle 74.5° 74.5° 74°
H. Seat Tube Length 470mm 495mm 520mm
I. Bottom Bracket Height 277mm 277mm 279mm
J. Bottom Bracket Drop 74mm 74mm 72mm
M. Wheelbase 1006mm 1009mm 1015mm
N. Front to Center 594mm 595mm 600mm

Specs

Frame GRX
Rims DT Swiss XR 361 Asym 29"
Hubs Front: DT Swiss 350, 12x100, Centerlock, 28h
Rear: DT 350 12x142 11spd Centerlock 28h
Spokes Sapim Race
Axles Front: 15x110mm
Rear: 12x148mm
Tires Maxxis Rambler, 700x40c
Bottom Bracket Shimano Ultegra BB
Crankset Shimano GRX 11spd
Chainrings 48/31t
Shifters Shimano GRX 810
Front Derailleur Shimano GRX Braze-On, 11spd
Rear Derailleur Shimano GRX, 11spd
Cassette/Freewheel Shimano Ultegra 6800, 11-34t
Chain Shimano SLX M7000, 11spd
Brakes Shimano GRX 810
Rotors Shimano RT80 Ice Tech Centerlock, 160mm
Handlebars Easton EA70 AX
Tape/Grips Velo Bar Tape
Stem Easton EA90
Headset Cane Creek 40 IS Integrated Headset
Seatpost Easton EC70, Zero Offset
Saddle Ergon Women's SR10 Sport Gel Saddle or WTB Volt
Pedals Sold separately

* Subject to change without notice.
